2004 Bmw M3 problems
The BMW M3 is a high-performance version of the BMW 3 Series, developed by BMW's in-house motorsport division, BMW M GmbH. M3 models have been produced for every generation of 3 Series since the E30 M3 was introduced in 1986.
The initial model was available in a coupé body style, with a convertible body style made available soon after. M3 saloons were offered initially during the E36 (1994–1999) and E90 (2008–2012) generations. Since 2014, the coupé and convertible models have been rebranded as the 4 Series range, making the high-performance variant the M4. Variants of the 3 Series since then have seen the M3 produced as a saloon, until 2020, when the M3 was produced as an estate (Touring) for the first time, alongside the saloon variant.
E30 generation (1986–1991)
The first BMW M3 was based on the E30 3 Series and was intended to be a homologation special to satisfy the Deutsche Tourenwagen Meisterschaft and Group A Touring rules, which required a total of 5,000 cars to be built. It was presented to the public at the 1985 Frankfurt Motor Show, and began production from March 1986 to June 1991. The E30 M3 was mainly produced in the coupé body style, but limited volumes of convertibles were also produced.
The front splitter, the rear apron, sill panels, as well as changes to the body in the area of the rear window (C-pillar) and the bootlid improved the aerodynamics. For aerodynamic reasons, the rear window was flattened and the tailgate was made of light, glass-reinforced plastic raised by approximately 40 mm for better air flow. The changes over the rear of the car resulted in lower lift forces and better straight-line stability. In addition, the windscreen was glued in – not, as with the other E30 models, framed with a window rubber and piping. As a result, the M3 achieved a relatively low drag coefficient of Cd=0.33 instead of Cd=0.38 as in the standard 3 Series. The only exterior body panels the regular 3 Series and the M3 shared were the bonnet, roof panel, and sunroof.
The brake calipers, discs and master cylinder were unique to the M3 model.
The transmission was a Getrag 265 5-speed manual. European models were outfitted with a dogleg version with close ratios and a 1:1 ratio for fifth gear. North American models used a traditional shift pattern and had wider gear spacing with an overdriven fifth gear. A clutch-type limited-slip differential was standard equipment.
In 2004, Sports Car International named the E30 M3 number six on the list of Top Sports Cars of the 1980s. In 2007, Automobile Magazine included the E30 M3 in their "5 greatest drivers cars of all time" under their 25 Greatest Cars of All Time.
Social links
Common 2004 Bmw M3 problems

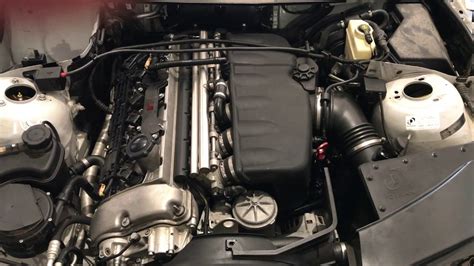

The BMW M3 E46, produced from 2000 to 2006, is a highly regarded sports car with an impressive chassis and a 3.2-liter straight-six S54B32 engine that produces 343 hp and 269 lb-ft of torque. However, like any vehicle, it has its share of common problems that potential buyers should be aware of.
One of the most well-known issues is the rod bearing problem, which affects the S54 engine. BMW did not specify the correct rod bearing sizes, leading to premature wear and eventual failure. The solution is a 100k mile rod bearing service, but it's not a permanent solution. Even the best options, like the WPC Treated Rod Bearing Service Kit, will need to be replaced eventually. If you're purchasing an E46 M3, it's crucial to check the mileage and ensure that the rod bearing service has been performed.
Another issue is with the VANOS camshaft hubs, which are part of BMW's variable valve timing system. The S54 has a unique twist, and the VANOS units are a known issue for all BMWs of this era. It's essential to perform the VANOS service if you suspect your VANOS is failing, but it's also critical to ensure that the VAC updated VANOS camshaft hubs are included in that service. The camshaft hubs have a tendency to break off and find themselves in the timing chain, which can cause significant problems.
Subframe cracks or tears are another common problem, and even cars that have never seen more than standard street driving can suffer from this engineering oversight. The Turner Motorsport Rear Subframe Reinforcement Kit is a permanent fix that will help keep your subframe intact or repaired. However, it's important to note that even if your E46 M3 doesn't look like it has subframe cracks, there could still be cracks hiding under the subframe mounts.
The SMG transmission, which uses a hydraulic system to shift gears automatically, is also known to have issues. The pump that actuates the gear changes is known to fail, and replacing it can be expensive. If you find that the paddles won't respond to your commands or the transmission is shifting especially roughly, it could be in need of a replacement pump.
Other common problems include rear subframe failures, SMG auto gearbox pump and software issues, and Vanos issues. It's essential to check for rust, especially on the arches, and cracked rear subframe components before purchasing an E46 M3. Regular maintenance, like fluid changes, filters, and spark plugs, is also necessary to keep your E46 M3 in good condition.
In summary, the BMW M3 E46 is a highly regarded sports car with some common problems that potential buyers should be aware of. Regular maintenance and inspections can help prevent these issues from becoming significant problems. If you're considering purchasing an E46 M3, it's crucial to do your research and ensure that the car has been well-maintained.
What is the big 3 issue with the E46 M3?
The BMW E46 M3 with the S54 engine is an incredibly powerful and capable vehicle, but it has some notable points of failure. You will often hear people talk about “The Big 3” when it comes to maintenance on your E46. The Big 3 includes rod bearings, a rebuilt VANOS, and subframe reinforcement.
How many miles can a 2004 BMW M3 last?
the m3 should last at least 200k with the proper maintenance. i've heard of many m3 owners well into the 100k mile mark. i'm at 99k and no major probs so far. i plan to keep it for awhile and eventually make it my auto-x/track car.
What are common problems with E46 M3?
We'll go into more detail about what to look out for when buying a used E46 M3 later on in this article, but as a starting point, here are some of the key common problems to be aware of: Rust – especially on the arches. Cracked rear subframe components. SMG auto gearbox pump and software issues.
Is the BMW M3 a reliable car?
Due to a combination of high average annual repair costs, as well as frequency and severity of unscheduled repairs, RepairPal gave the BMW M3 a below-average reliability rating of 2.0 out of 5.0.
How many miles can a 2004 BMW M3 last?
the m3 should last at least 200k with the proper maintenance. i've heard of many m3 owners well into the 100k mile mark. i'm at 99k and no major probs so far. i plan to keep it for awhile and eventually make it my auto-x/track car.
Is BMW M3 good or bad?
Highs Heroic powertrain, available with a six-speed manual transmission, a performance car that's easy to daily-drive. Lows Too many unnecessary drive modes, Competition and CS model are automatic-only. Verdict For as intensely fast as the M3 is on track, it's surprisingly livable for commuting every place else.
What are common problems with E46 M3?
We'll go into more detail about what to look out for when buying a used E46 M3 later on in this article, but as a starting point, here are some of the key common problems to be aware of: Rust – especially on the arches. Cracked rear subframe components. SMG auto gearbox pump and software issues.
Are old BMW M3 reliable?
As with any vehicle, the BMW M3 can last up to 200,000 miles or more with proper care and maintenance. While it has a reliability rating of just 2.0 out of 5.0, the BMW M3 does have a lot of power and excellent handling.
2004 Bmw M3 complaints
The NHTSA has received 0 complaints about various vehicle components related to the 2004 Bmw M3.
You can leave your car complaint via the special form below.
2004 Bmw M3 recalls
The National Highway Traffic Safety Administration (NHTSA) has issued 3 recalls for different components of the 2004 Bmw M3.
- Manufacturer: BMW of North America, LLC
- Components: AIR BAGS:FRONTAL:PASSENGER SIDE:INFLATOR MODULE
- Summary: BMW of North America, LLC (BMW) is recalling certain 2000-2005 323iT, 325iT, 325xiT, 320i, 323i, 325i, 325xi, 328i, 330i and 330xi and 2000-2006 323Ci, 325Ci, 328Ci, 330Ci, M3 Coupe, 323Cic, 325Cic, 330Cic, and M3 Convertible vehicles equipped with non-desiccated frontal Takata PSAN inflators and PSPI passenger frontal air bag inflators containing phase stabilized ammonium nitrate (PSAN) propellant that were used as interim remedy parts for previous Takata recalls. These inflators may explode due to propellant degradation occurring after long-term exposure to high absolute humidity, high temperatures, and high temperature cycling.
- Consequence: An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
- Remedy: BMW will notify owners, and dealers will replace the passenger's front air bag, free of charge. The recall began February 13, 2020. Owners may contact BMW customer service at 1-800-525-7417.
- Manufacturer: BMW of North America, LLC
- Park It: 1
- Components: AIR BAGS:FRONTAL:DRIVER SIDE:INFLATOR MODULE
- Summary: BMW of North America, LLC (BMW) is recalling certain model year 2002-2005 325i, 325xi, 330i, and 330xi Sedans, and 325xi and 325i Sportswagons, 2002-2006 330Ci, 325Ci, and M3 Convertibles and 325i, 330i, and M3 Coupes, 2002-2003 M5, 540i, 525i Sedan, and 530i Sedans, and 540i and 525i Sportswagons, and 2003 X5 3.0i and 4.4i Sports Activity Vehicles. Please note that the 5-series and X5 vehicles are only included if they are equipped with the optional sports steering wheel. The affected vehicles are equipped with a dual-stage driver frontal air bag that may be susceptible to moisture intrusion which, over time, could cause the inflator to rupture.
- Consequence: In the event of a crash necessitating deployment of the driver's frontal air bag, the inflator could rupture with metal fragments striking the driver or other occupants resulting in serious injury or death.
- Remedy: Owners are advised not to drive their vehicles until the vehicle has been remedied. BMW will notify owners, and dealers will replace the front driver air bag module, free of charge. The recall began Aug 2016. Owners may contact BMW customer service at 1-800-525-7417. Note: This recall supersedes recall 14V-348 in its entirety. Additionally, vehicles that have had their driver side frontal air bag replaced previously as part of a recall remedy need to have their air bag replaced under this recall as well. Note: On December 17, 2015 BMW removed the model year 2004 X5 3.0i and 4.4i Sports Activity vehicle from this recall. Those vehicles were mistakenly identified as including the air bags that are subject to this recall.
- Manufacturer: BMW of North America, LLC
- Components: AIR BAGS
- Summary: BMW of North America, LLC (BMW) is recalling certain model year 2000 323i sedans, coupes, convertibles, and Sports Wagons; 2000 328i sedans and coupes; 2001-2005 325i sedans, coupes, convertibles, and Sport Wagons; 2001-2005 325xi sedans and Sports Wagons; 2006 325i coupes and convertibles; 2001-2006 330i sedans, coupes, and convertibles; 2001-2005 330xi sedans; and 2001-2006 M3 coupes and convertibles to address a safety defect in the passenger side frontal air bag which may produce excessive internal pressure that could cause the air bag inflator to rupture upon deployment of the air bag.
- Consequence: In the event of a crash necessitating deployment of the passenger's frontal air bag, excessive internal pressure could cause rupturing of the inflator resulting in metal fragments striking and potentially seriously injuring the passenger seat occupant or other occupants.
- Remedy: BMW will notify owners, and dealers will replace the passenger side frontal air bag, free of charge. An interim notice was mailed to owners in September 2014. A second notice was mailed when an adequate supply of parts became available, on December 1, 2014. Owners may contact BMW customer service at 1-800-525-7417 or email BMW at [email protected].
Negative 2004 Bmw M3 car reviews
Positive 2004 Bmw M3 car reviews
-
This is a very special car. You see, I needed something bigger than the two-seater I was driving before but still wanted a lot of fun. And let me tell you, this car delivers. It has tons of performance, is very comfortable, and is loaded with convenience features. Mine has the SMG transmission, which is a hugely capable transmission that helps both in performance driving and in around-town traffic. I couldn't be happier with my choice.
-
My '04 M3 puts a magical smile on my face that is hard to put into words! To truly experience what this car delivers, you need to be either a gutsy driver or one of the screaming passengers! I had a blast at Laguna Seca Raceway, even though it took me some time to learn the SMG. If you want to know more about my M3, I suggest you check out the customer M3 reviews. In my opinion, this car is by far the best and scariest time in total control! It's the most fun you can have with your pants on! I have only made 4 mods to my M3, including racing bushings for suspension, -1 degree camber for handling, Cool Carbon brake pads for the track, and a K&N air filter. Other than that, it's completely stock. I can't wait to drive it again! You'll have to pry me out of the seat!
-
I have owned 58 cars, but this one is the very best. I first drove a friend's new one in 1994 and vowed I'd get one, one day. Well, I am fortunate to own such a magnificent beast! The grin factor is huge. I always enjoy starting her up, letting her warm up, and then giving more and more stick. And then there's still the Sport button - wow, what could a person want? It looks good in an understated way - just the way I like it. This is the best thing I ever did on the motoring side of things! I find myself wondering what I could replace it with, but nothing comes to mind!
-
Having owned Audi's and BMW x5,330d, I finally bought my m3. What a fantastic motor! The other day, I went to Manchester via the motorway and recorded 29.6 mpg at a steady 80-90 mph. This is, by a long way, the best car I have ever owned. It's an absolute pleasure to drive!
-
The BMW M3 boasts an impressive 333 HP and the beautiful SMG (Sequential Manual Gearbox) makes driving up mountain roads a breeze. With no need to worry about stepping on the clutch, the SMG makes gear changes feel like an automatic, while still allowing you to juice up the power like a Stake-Shift. It's a truly enjoyable and romantic car to drive, especially when passing by mountain sides. The only downside is the fuel economy, which could be improved to match that of a Camry. However, the car is already so great that you'll forget all about the fuel economy. I highly recommend this car to anyone looking for a thrilling driving experience.
Additional sources
More sources of information about 2004 Bmw M3 problems:
Older M3 Convertible Issues and Problems - BMW E46 M3
Rear subframe was an issue with coupes; window regulators are weak in all E46s; wouldn't buy a high mile SMG car; check the Ti shadow trim on the interior for ...
BMW E46 M3 Buyer's Guide - Common Issues, Problems, Pricing
Aug 5, 2020 ... The E46 3-Series suffered from a design flaw in which the mounting points for the rear subframe would crack or tear over time, causing some ...
Most Common BMW E46 M3 Problems – ECS Tuning
Nov 5, 2020 ... Perhaps the most worrying and trickiest problem to diagnose is the dreaded subframe cracks or tears. Even cars that have never seen more than ...
Common Issues with E36 M3
Mar 20, 2012 ... Control Arms and bushings, flex disk, shifter rebuild @ ~100k miles. Valve cover gasket whenever it starts leaking, belts and tensioners @ 60- ...
Known SMG problems | E46 Fanatics Forum
Feb 24, 2008 ... I'm currently looking for an M3 SMG between 2002 - 2004. Given that the 2002 model was the first year SMG was available in North America, is ...
Other years of Bmw M3
Are you having problems with your 2004 Bmw M3?
Willard Adams 2025-02-14
This vehicle had a vibration in the front end since the day I took delivery. Despite spending 50+ days in the shop during that time, the problem could not be diagnosed and fixed. Unfortunately, both the dealer and the manufacturer were unable to test drive the vehicle over the speed limit, which made it difficult to identify the issue. It's important to note that the problem persisted at speeds of 120 km/hr and up. While my experience was not ideal, I hope that others have better luck with their BMWs and receive the satisfaction they deserve from their dealers. This was my first and last BMW.
