1986 Saab 900 problems
The Saab 900 is a mid-sized automobile which was produced by Saab from 1978 until 1998 in two generations; the first from 1978 to 1993, and the second from 1994 to 1998.
The first-generation car was based on the Saab 99 chassis, though with a longer front end to meet U.S. frontal crash regulations and to make room for the turbo-charged engines, air conditioning and other equipment that was not available in the early days of the 99 model. The 900 was produced in 2- and 4-door sedan, and 3- and 5-door hatchback configurations and, from 1986, as a cabriolet (convertible) model. There were single- and twin-Zenith carburettor; fuel injected, and turbocharged engines, including both Full Pressure Turbo (FPT), and, in European models during the early 1990s, Low Pressure Turbos (LPT).
Saab 900 "Classic"
Overview
The Saab 900 is a front-engine, front-wheel-drive mid-size car with a longitudinally mounted, 45-degree canted, inline four-cylinder engine, double wishbone front suspension and beam-axle rear suspension. It was originally introduced on 12 May 1978, for the 1979 model year. Sales commenced in the fall of 1978.
Like its predecessor the 99, the 900 contained a number of unusual design features that distinguish it from most other cars. First, the B-engine, that was installed "backwards", with power delivered from the crank at the front of the car. Second, the transmission, technically a transaxle, bolted directly to the bottom of the engine to form the oil pan (albeit with separate oil lubrication). Thus, power from the crank would be delivered out of the engine at the front, then transferred down and back to the transmission below, via a set of chain-driven primary gears. In similar fashion, Minis also had their gearbox mounted directly below the engine; however, the Mini gearbox and engine shared the same oil, whereas the Saab 900 (and 99) gearboxes contained a separate sump for engine oil.
The 900 body was developed from the older 99 model, keeping the basic layout but with a new longer front part. This allowed for more space in the engine room and better crash protection for passengers. The middle and rear parts of the body were identical to the 99 Combi Coupé (which was withdrawn from the lineup at the same time). Later a new rear end was designed for the 2- and 4-door sedans.
Refined over several decades of two-digit Saab models, the 900's double wishbone suspension design provided excellent handling and road feel. The rear suspension comprised a typical beam axle design, stabilized with a Panhard rod. However, the attachment points between the axle and chassis made up an unusual configuration that, in essence, consists of two Watt's linkages at either end of the axle: A lower control arm attaches the axle to the bottom of the vehicle, while an upper link attaches at the top but faces towards the rear, unlike a typical four-link design with both lower and upper links facing forward. The design-principle being similar with the rear suspension presented in Alfa Romeo Alfasud already in 1971, except in the Alfasud, the beam axle itself functioned as a sway-bar, hence separate sway-bars in the rear suspension was not needed.
Early models did not have sway bars; they began appearing on certain models in 1985, and, in U.S. and possibly other markets, became standard on all trim levels by the late 1980s. The sway bars decreased body roll, but at the expense of some ride comfort and when driven aggressively, increased inside wheel spin. The front and rear bars' diameters were unchanged throughout the model's run.
The 900 has a deeply curved windshield, providing the best driver visibility. The dashboard was curved to enable easy reach of all controls, and featured gauges lit up from the front. Saab engineers placed all controls and gauges in the dashboard according to their frequency of use and/or importance so that the driver need only divert their gaze from the road for the shortest possible time and by the smallest angle. This is why, for example, the oft-used radio is placed so high in the dashboard. In keeping with the paradigm of its predecessor, the 99 model, the 900 employed a door design unique in automotive manufacturing, with an undercutting sweep to meet the undercarriage, forming a tight, solid unit when the door was closed. This feature also eliminated the stoop in the cabin at the footing of the door, as seen in automobiles of other manufacturers, thereby preventing water and debris from collecting and possibly entering the cabin or initiating corrosion, as well as enabling passengers to enter and exit the cabin without need to step over several inches of ledge.
The 900 underwent minor cosmetic design changes for 1987, including restyled front end and bumpers that went from a vertical to a more sloped design. To save money, Saab kept the basic undercarriage more or less unchanged throughout the 900's production run.
The Saab 900 could be ordered with different options, including a high performance option called the Aero or, as it was known in the U.S. "Special Performance Group" (SPG). The Aero/SPG incorporated (depending on the market and model year) a body skirt; a sport-suspension (1987+) that included shorter, stiffer springs, stiffer shocks, and sway bars; leather seats; premium stereo; and air conditioning. Each of these features could also be ordered independently from Saab's Accessories Catalog for fitment to standard models.
Another desirable UK option at this time was the fitment of very distinctive Minilite alloy wheels. Initially these had the words 'Minilite' and 'Saab' cast in raised lettering; later Saabs had a similar wheel made by Ronal.
Power output varied by model year and market, but 900S and 900 Turbo models produced from 1985 and onward were fitted with a 16-valve engine, while the basic 900 kept the earlier 8-valve engine.
A 1989 Saab 900 SPG, owned by Peter Gilbert of Wisconsin, was driven over a million miles before being donated to The Wisconsin Automotive Museum. Peter Gilbert claimed a million miles out of the turbocharging unit in addition to the engine itself. Saab gave Mr Gilbert a Saab 9-5 Aero.
Social links
Common 1986 Saab 900 problems
The Saab 900, produced from 1978 to 1998, is a compact executive car known for its unique design and performance. However, like any other car, it has its share of common problems that owners have reported over the years.

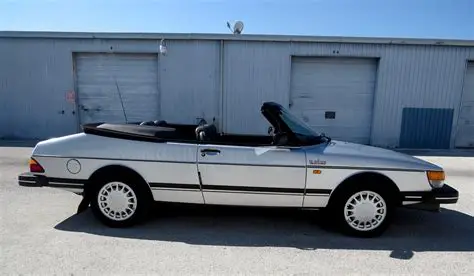

One of the most common problems with the Saab 900, particularly the convertible version, is the hesitation of the roof when going up or down. This issue is caused by a problem with the motor, specifically the motor bracket twisting and binding when operating, leading to eventual failure of the motor. The solution to this problem is to replace the motor with a new one, but it is essential to fit a cross member (metal bar) over the motor arm to prevent it from twisting in the future and damaging the new motor.
Another common problem with the Saab 900 convertible is damp or wet carpets in the front left footwell, which is most likely caused by leaking heater control valves. The solution to this problem is to replace the heater control valves, which can be found at low prices. It is also necessary to dry out the carpets to avoid dampness setting in.
The LED display on the 900 is also known for failing, causing the display to fragment. If this issue occurs, the entire display unit needs to be replaced to resolve it.
Suspension problems are also common in the Saab 900, which can be caused by faulty suspension bushes or faulty shock absorbers. To check if it is the bushes, place your hand on top of the rubber mounting at the top of the front wing and press heavily on this area. If you feel side movement, it is most likely the bushes that have failed, and they will need to be replaced. It is also essential to check that the shock absorbers are not leaking, and if they are, they will need to be replaced.
Gearbox problems are also a common issue in the Saab 900, which can lead to costly engine-out repairs. New parts for gearboxes are scarce, but specialists have used stocks. Automatic gearboxes are not cheap to replace, and it is essential to address this issue promptly to avoid further damage to the engine.
The water system in the Saab 900 is also known for having issues, particularly with the electric fan not making a contribution at expected temperatures. If this issue occurs, it is necessary to replace the sensor with a new one, which can be found from parts suppliers.
In summary, the Saab 900 has several common problems that owners have reported over the years, including issues with the roof, heater control valves, LED display, suspension, gearbox, and water system. It is essential to address these issues promptly to avoid further damage to the car and ensure its longevity.
1986 Saab 900 car problems categorized by type of issue
After analyzing all complaints sent to the NHTSA and researching popular Saab 900 problems, we found that the most common problems with these 2023 model year vehicles are:
- Electrical system problems
- Engine and engine cooling problems
- Fuel system problems
- Tires problems
- Other problems
The graph below shows statistics for all 1986 Saab 900 vehicle components and the number of complaints received.
1986 Saab 900 complaints
The NHTSA has received 12 complaints about various vehicle components related to the 1986 Saab 900.
FUEL SYSTEM, OTHER,ELECTRICAL SYSTEM PROBLEM
- Date Of Incident: 2003-08-31
- VIN: YS3AB45J4G2
- Components: FUEL SYSTEM, OTHER,ELECTRICAL SYSTEM
- Summary: MY 1986 , 8 VALVE, 2.0 LITER SAAB 900 STALLS OUT IN HOT WEATHER AND WILL NOT RESTART UNLESS AT LEAST 15 MINUTES HAVE PASSED. I HAVE REPLACED THE FUEL FILTER,DISTRIBUTOR CAP, IGNITION COIL, SPARK PLUGS, AND THE PROBLEM STILL EXISTS. *AK
ELECTRICAL SYSTEM PROBLEM
- Date Of Incident: 2024-11-24
- VIN: YS3AD35L1G2
- Components: ELECTRICAL SYSTEM
- Summary: THE VEHICLE LOSES POWER ABRUPTLY CAUSING THE TACHOMETER TO DROP AND THE STEERING TO BECOME HEAVY YET THE ENGINE CONTINUES TO RUN SMOOTHLY, AS THE CONSUMER ATTEMPTS TO PULL TO THE SHOULDER THE POWER RETURNS BEFORE THE CAR STOPS, THE DEALER HAS BEEN UNABLE TO DUPLICATE OR REPRODUCE THE PROBLEM. NLM
TIRES PROBLEM
- Date Of Incident: 2024-11-24
- Components: TIRES
- Summary: I AM AWARE OF THE TIRE RECALL AND QUESTIONS ABOUT OTHER MANUFACTURERS. I PURCHASED A SAAB IN 1986 EQUIPPED WITH PIRELLI TIRES. ALL FOUR OF THE TIRE TREADS SEPARATED WITHIN 15,000, INCLUDING ONE INCIDENT AT 65 MPH. I SENT ONE FO THE TIRES BACK TO PIRELLI FOR EXAMINATION. THEY CLAIMED THERE WAS NO MNAUFACTURING FLAW THAT CAUSED THE SEPARATION. THERE IS ABSOLUTELY NO WAY 4 NEW TIRES WITH LESS THAN 15,000 MILES COULD ALL SEPARATE WITHOUT A DEFECT. I REALIZE THIS IS AN OLD COMPLAINT BUT I THINK IT IS IMPORTANT TO KNOW THAT OTHER TIRE COMPANIES ARE ALSO PRODUCING SHODDY TIRES.( DOT NUMBER: )
SERVICE BRAKES, HYDRAULIC,ENGINE AND ENGINE COOLING,ELECTRICAL SYSTEM,TIRES,EQUIPMENT PROBLEM
- Date Of Incident: 1996-05-31
- VIN: YS3CD6847T1
- Components: SERVICE BRAKES, HYDRAULIC,ENGINE AND ENGINE COOLING,ELECTRICAL SYSTEM,TIRES,EQUIPMENT
- Summary: WHEN DRIVING AT 65 MPH THERE WAS NOISE COMING FROM THE STEERING COLUMN, AND WHEN APPLYING THE BRAKES, CONSUMER HEARD A LOUD KNOCKING NOISE COMING FROM THE BRAKES. ALSO, BATTERY KEPT GOING DEAD/ AIR CONDITIONING WENT OUT/THE TEMPERATURE GAUGE STOPPED WORKING/BRAKE PADS WORE OUT AND REPLACED FOUR TIMES/ SPARE TIRE KEPT GETTING A FLAT/CONTROL UNIT HAD TO BE REPLACED FOUR TIMES/ REPLACED A CRACK IN EXHAUST SYSTEM, AS WELL AS OTHER PARTS IN THE VEHICLE.*AK
ENGINE AND ENGINE COOLING PROBLEM
- Date Of Incident: 2024-11-24
- Fire: 1
- Components: ENGINE AND ENGINE COOLING
- Summary: VEHICLE ENGINE FIRE.
SEATS PROBLEM
- Date Of Incident: 1996-09-13
- Crash: 1
- VIN: YS38D36LXG2
- Components: SEATS
- Summary: THE CONSUMER WAS HIT IN THE REAR AND THE DRIVERS SEAT RECLINED BACKWARDS. PLEASE DESCRIBE.
SUSPENSION PROBLEM
- Date Of Incident: 1995-08-01
- VIN: YS3AD35L8G2
- Components: SUSPENSION
- Summary: WHEEL BEARING REPAIRED DUE TO FAILURE. *SD
ENGINE AND ENGINE COOLING PROBLEM
- Date Of Incident: 1995-11-01
- VIN: YS3AD35L8G2
- Components: ENGINE AND ENGINE COOLING
- Summary: WATER PUMP REPLACED DUE TO LEAK. *SD
ENGINE AND ENGINE COOLING PROBLEM
- Date Of Incident: 1995-04-01
- Fire: 1
- Components: ENGINE AND ENGINE COOLING
- Summary: CATALYTIC CONVERTER OVERHEATED WIRING AND SENT SMOKE INTO PASSENGER COMPARTMENT. TT
ELECTRICAL SYSTEM PROBLEM
- Date Of Incident: 1995-04-01
- Components: ELECTRICAL SYSTEM
- Summary: CATALYTIC CONVERTER OVERHEATED WIRING AND SENT SMOKE INTO PASSENGER COMPARTMENT. TT
ELECTRICAL SYSTEM PROBLEM
- Date Of Incident: 2024-11-24
- Components: ELECTRICAL SYSTEM
- Summary: WHILE DRIVING WINDOWS FAILED, INDICATOR LIGHT CAME ON THEN STOPPED. HEAD LIGHTS WENT OUT AND OTHER FAILURES. PLEASE DESCRIBE DETAILS. TT
FUEL SYSTEM, GASOLINE PROBLEM
- Date Of Incident: 1994-03-14
- Fire: 1
- VIN: YS3AC35D4G7
- Components: FUEL SYSTEM, GASOLINE
- Summary: VEHICLE FIRE/EXPLOSION, CAUSED BY POSSIBLE LEAK OF GASOLINE. *SKD
1986 Saab 900 recalls
The National Highway Traffic Safety Administration (NHTSA) has issued 2 recalls for different components of the 1986 Saab 900.
- Manufacturer: SAAB CARS USA, INC.
- Components: FUEL SYSTEM, GASOLINE:DELIVERY:HOSES, LINES/PIPING, AND FITTINGS
- Summary: THE FUEL HOSE BETWEEN THE PRESSURE REGULATOR AND THE INJECTOR FUEL RAIL MAY RUPTURE DUE TO STRESS.
- Consequence: THIS COULD RESULT IN A FUEL LEAK AND POSSIBLY A FIRE.
- Remedy: REPLACE FUEL HOSE WITH NEW PREFORMED PLASTIC HOSE.
- Manufacturer: SAAB CARS USA, INC.
- Components: STEERING: STEERING WHEEL/HANDLE BAR
- Summary: THE BOLT IN THE UPPER STEERING COLUMN U-JOINT CLAMP MAY HAVE BEEN OVER TORQUED AND MAY BREAK. CONSEQUENCE OF DEFECT: A BROKEN U-JOINT CLAMP MAY ALLOW THE STEERING SHAFT TO PULL OUT OF THE JOINT AND RESULT IN LOSS OF STEERING CONTROL AND POSSIBLY AN ACCIDENT.
- Remedy: REPLACE AND PROPERLY TORQUE BOLT.
