1983 Saab 900 problems
The Saab 900 is a mid-sized automobile which was produced by Saab from 1978 until 1998 in two generations; the first from 1978 to 1993, and the second from 1994 to 1998.
The first-generation car was based on the Saab 99 chassis, though with a longer front end to meet U.S. frontal crash regulations and to make room for the turbo-charged engines, air conditioning and other equipment that was not available in the early days of the 99 model. The 900 was produced in 2- and 4-door sedan, and 3- and 5-door hatchback configurations and, from 1986, as a cabriolet (convertible) model. There were single- and twin-Zenith carburettor; fuel injected, and turbocharged engines, including both Full Pressure Turbo (FPT), and, in European models during the early 1990s, Low Pressure Turbos (LPT).

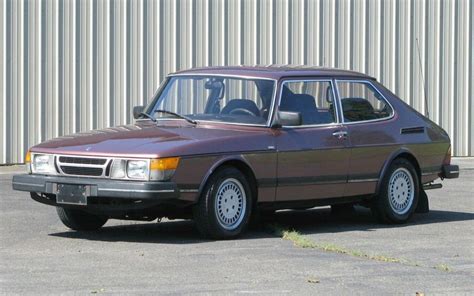

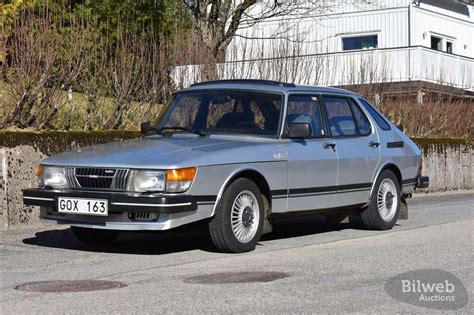

Saab 900 "Classic"
Overview
The Saab 900 is a front-engine, front-wheel-drive mid-size car with a longitudinally mounted, 45-degree canted, inline four-cylinder engine, double wishbone front suspension and beam-axle rear suspension. It was originally introduced on 12 May 1978, for the 1979 model year. Sales commenced in the fall of 1978.
Like its predecessor the 99, the 900 contained a number of unusual design features that distinguish it from most other cars. First, the B-engine, that was installed "backwards", with power delivered from the crank at the front of the car. Second, the transmission, technically a transaxle, bolted directly to the bottom of the engine to form the oil pan (albeit with separate oil lubrication). Thus, power from the crank would be delivered out of the engine at the front, then transferred down and back to the transmission below, via a set of chain-driven primary gears. In similar fashion, Minis also had their gearbox mounted directly below the engine; however, the Mini gearbox and engine shared the same oil, whereas the Saab 900 (and 99) gearboxes contained a separate sump for engine oil.
The 900 body was developed from the older 99 model, keeping the basic layout but with a new longer front part. This allowed for more space in the engine room and better crash protection for passengers. The middle and rear parts of the body were identical to the 99 Combi Coupé (which was withdrawn from the lineup at the same time). Later a new rear end was designed for the 2- and 4-door sedans.
Refined over several decades of two-digit Saab models, the 900's double wishbone suspension design provided excellent handling and road feel. The rear suspension comprised a typical beam axle design, stabilized with a Panhard rod. However, the attachment points between the axle and chassis made up an unusual configuration that, in essence, consists of two Watt's linkages at either end of the axle: A lower control arm attaches the axle to the bottom of the vehicle, while an upper link attaches at the top but faces towards the rear, unlike a typical four-link design with both lower and upper links facing forward. The design-principle being similar with the rear suspension presented in Alfa Romeo Alfasud already in 1971, except in the Alfasud, the beam axle itself functioned as a sway-bar, hence separate sway-bars in the rear suspension was not needed.
Early models did not have sway bars; they began appearing on certain models in 1985, and, in U.S. and possibly other markets, became standard on all trim levels by the late 1980s. The sway bars decreased body roll, but at the expense of some ride comfort and when driven aggressively, increased inside wheel spin. The front and rear bars' diameters were unchanged throughout the model's run.
The 900 has a deeply curved windshield, providing the best driver visibility. The dashboard was curved to enable easy reach of all controls, and featured gauges lit up from the front. Saab engineers placed all controls and gauges in the dashboard according to their frequency of use and/or importance so that the driver need only divert their gaze from the road for the shortest possible time and by the smallest angle. This is why, for example, the oft-used radio is placed so high in the dashboard. In keeping with the paradigm of its predecessor, the 99 model, the 900 employed a door design unique in automotive manufacturing, with an undercutting sweep to meet the undercarriage, forming a tight, solid unit when the door was closed. This feature also eliminated the stoop in the cabin at the footing of the door, as seen in automobiles of other manufacturers, thereby preventing water and debris from collecting and possibly entering the cabin or initiating corrosion, as well as enabling passengers to enter and exit the cabin without need to step over several inches of ledge.
The 900 underwent minor cosmetic design changes for 1987, including restyled front end and bumpers that went from a vertical to a more sloped design. To save money, Saab kept the basic undercarriage more or less unchanged throughout the 900's production run.
The Saab 900 could be ordered with different options, including a high performance option called the Aero or, as it was known in the U.S. "Special Performance Group" (SPG). The Aero/SPG incorporated (depending on the market and model year) a body skirt; a sport-suspension (1987+) that included shorter, stiffer springs, stiffer shocks, and sway bars; leather seats; premium stereo; and air conditioning. Each of these features could also be ordered independently from Saab's Accessories Catalog for fitment to standard models.
Another desirable UK option at this time was the fitment of very distinctive Minilite alloy wheels. Initially these had the words 'Minilite' and 'Saab' cast in raised lettering; later Saabs had a similar wheel made by Ronal.
Power output varied by model year and market, but 900S and 900 Turbo models produced from 1985 and onward were fitted with a 16-valve engine, while the basic 900 kept the earlier 8-valve engine.
A 1989 Saab 900 SPG, owned by Peter Gilbert of Wisconsin, was driven over a million miles before being donated to The Wisconsin Automotive Museum. Peter Gilbert claimed a million miles out of the turbocharging unit in addition to the engine itself. Saab gave Mr Gilbert a Saab 9-5 Aero.
Social links
Common 1983 Saab 900 problems
The Saab 900, introduced in 1978, was a groundbreaking car that popularized mainstream turbocharging. However, like any other car, it had its share of common problems.
One of the most common problems faced by Saab 900 owners is abnormal idle, also known as idle hunting. This issue is characterized by the engine's idle speed cycling up and down repeatedly. The two major causes of idle hunting are a bad Hall sensor and a sticking AIC (Air Injection Control) valve. The AIC valve is responsible for injecting air into the engine during idle to help maintain a stable idle speed. When it sticks, it can cause the engine to hunt, especially when the engine is under load, such as when waiting at a light with the foot on the brake.
Another common issue with the Saab 900 is gearbox problems, which can lead to costly engine-out repairs. The automatic transmissions in these cars are not cheap to repair, and new parts are scarce. However, specialists have used stocks, so it's possible to find replacement parts.
The Saab 900 also had issues with the water pump, which is built into the block in the early models. The repair kits for these are difficult to find, and some owners have converted to an electric pump. However, this is not recommended, as it can lead to different turbocharger and wastegate issues.
The interior bits in the early models of the Saab 900 are somewhat unique to these years, and later parts may not fit without some work. The upholstery is also unique and falls into disrepair easily, making it hard to find replacements. The front brake discs in the early models are mounted behind the hub, requiring removal of the entire axle assembly to change, which can be time-consuming and expensive.
Overall, while the Saab 900 is a reliable car, it does have its share of common problems. However, with proper maintenance and care, these issues can be minimized, and the car can provide years of trouble-free driving.
1983 Saab 900 car problems categorized by type of issue
After analyzing all complaints sent to the NHTSA and researching popular Saab 900 problems, we found that the most common problems with these 2023 model year vehicles are:
- Power train problems
- Vehicle speed control problems
The graph below shows statistics for all 1983 Saab 900 vehicle components and the number of complaints received.
1983 Saab 900 complaints
The NHTSA has received 2 complaints about various vehicle components related to the 1983 Saab 900.
POWER TRAIN PROBLEM
- Date Of Incident: 1998-07-20
- VIN: YS3AG$3S2D2
- Components: POWER TRAIN
- Summary: TRANSMISSION SHIFTS ERRATICALY AND PERFORMS POORLY.
VEHICLE SPEED CONTROL PROBLEM
- Date Of Incident: 1996-07-06
- Crash: 1
- Components: VEHICLE SPEED CONTROL
- Summary: CRUISE CONTROL JAMMED, CAUSING VEHICLE TO ACCELERATE AT FULL THROTTLE, RESULTING IN HEAD-ON COLLISION WITH TREE. *AK
1983 Saab 900 recalls
The National Highway Traffic Safety Administration (NHTSA) has issued 1 recalls for different components of the 1983 Saab 900.
- Manufacturer: SAAB CARS USA, INC.
- Components: ELECTRICAL SYSTEM:WIRING
- Summary: THE ELECTRICAL CABLE BETWEEN THE STARTER AND THE ALTERNATOR MAY RUB AGAINST A BRAKE LINE THAT IS ATTACHED TO THE WHEEL WELL ON THE LEFT SIDE OF THE ENGINE COMPARTMENT.
- Remedy: THE CABLE CONNECTION AT THE ALTERNATOR WILL BE ADJUSTED AND THE CABLE WILL BE RELOCATED SO IT DOES NOT CHAFE. ANY DAMAGE TO THE CABLE WILL BE REPAIRED.
